Marley HVLS PMSM Fans (Gearless) Models

We offer a range of HVLS PMSM fans to suit your unique requirements, including:
Model Fan Via Ft.(Mtrs) Motor Power Kw/HP Number of Blades Max Speed RPM Air Volume (CFM) Air Coverage (SQ. FT) Full Load Current (Ampere) Total Weight Kgs.
MPF-24 B5 24ft(7.3m) 1.5/2.0 5 0-50 442860 20000 2.8A@380V 130
MPF-20 B5 20ft(6.0m) 1.5/2.0 5 0-60 379610 15000 2.8A@380V 120
MPF-18 B5 18ft(5.4m) 1.1/1.5 5 0-65 356573 10000 2.60A@380V 100
MPF-16 B5 16ft(4.9m) 1.1/1.5 5 0-75 204215 8000 2.60A@380V 95
MPF-14 B5 14ft(4.2m) 0.75/1 5 0-85 169978 5000 2.50A@220V 80
MPF-12 B5 12ft(3.6m) 0.75/1 5 0-85 152746 4000 2.50A@220V 75
MPF-10 B5 10ft(3.0m) 0.40/0.5 5 0-100 98148 3000 2.00A@220V 60
MPF-08 B5 08ft(2.5m) 0.40/0.5 5 0-120 88326 2500 2.00A@220V 55
Standard Input Voltage AC 3PH 380-440V, +10%/-15%
Customized Size Color options are available

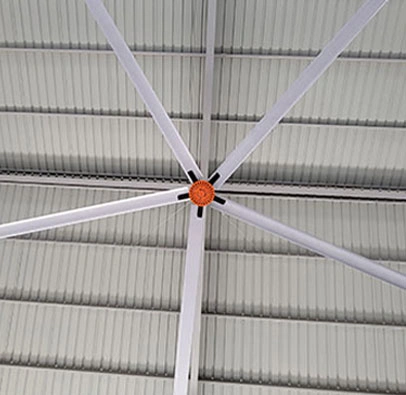

PMSM HVLS Fan

Marley PMSM HVLS Fans – Redefining Cooling Solutions

Marley Fans is a leading producer and supplier of HVLS (High-Volume Low-Speed) fans in India offering innovative cooling technology for the contemporary industrial, commercial and residential sectors. Among its bestsellers, the PMSM HVLS Fans (Permanent Magnet Synchronous Motor High-Volume Low-Speed Fans) are a giant leap in the way they are designed, operated, and used.

PMSM HVLS Fans are known for their exceptional operational efficiency and intense sound reduction and numerous energy conservation benefits. The fans provide exceptional air circulation which leads to decreased energy expenses while creating better comfort conditions in expansive areas. These fans suit industries that need precise performance capabilities.

What are PMSM HVLS Fans?

PMSM HVLS Fans are developed with modern motor technology, where a permanent magnet is employed as the magnetizing means instead of the conventional copper winding. This leads to reduced noise, higher efficiency and better air flow than the standard models of the same size. Marley incorporates this technology to its HVLS fans for a one of a kind cooling that equally consumes less power that is suitable for large areas such as the warehouses, factories, malls and sports complex.

Energy Efficiency:

PMSM technology also guarantees low power consumption while delivering high-performance airflow, thus cutting operating expenses substantially.

Ultra-Quiet Operation:

The advanced motor design means that the product is very quiet, which helps to create a conducive environment for work

Robust and Durable Design:

Constructed from high performance components, Marley PMSM HVLS Fans have been specifically designed to be durable and able to handle tough working environments.

Effortless Control:

These fans feature complex controls, which enable users to set speed and directions making the fans ideal for use in any environment.

Environmentally Friendly:

Being energy efficient, PMSM HVLS Fans assist organizations in achieving their green energy objectives in the course of operations.

Get a Personalized Quote Today!

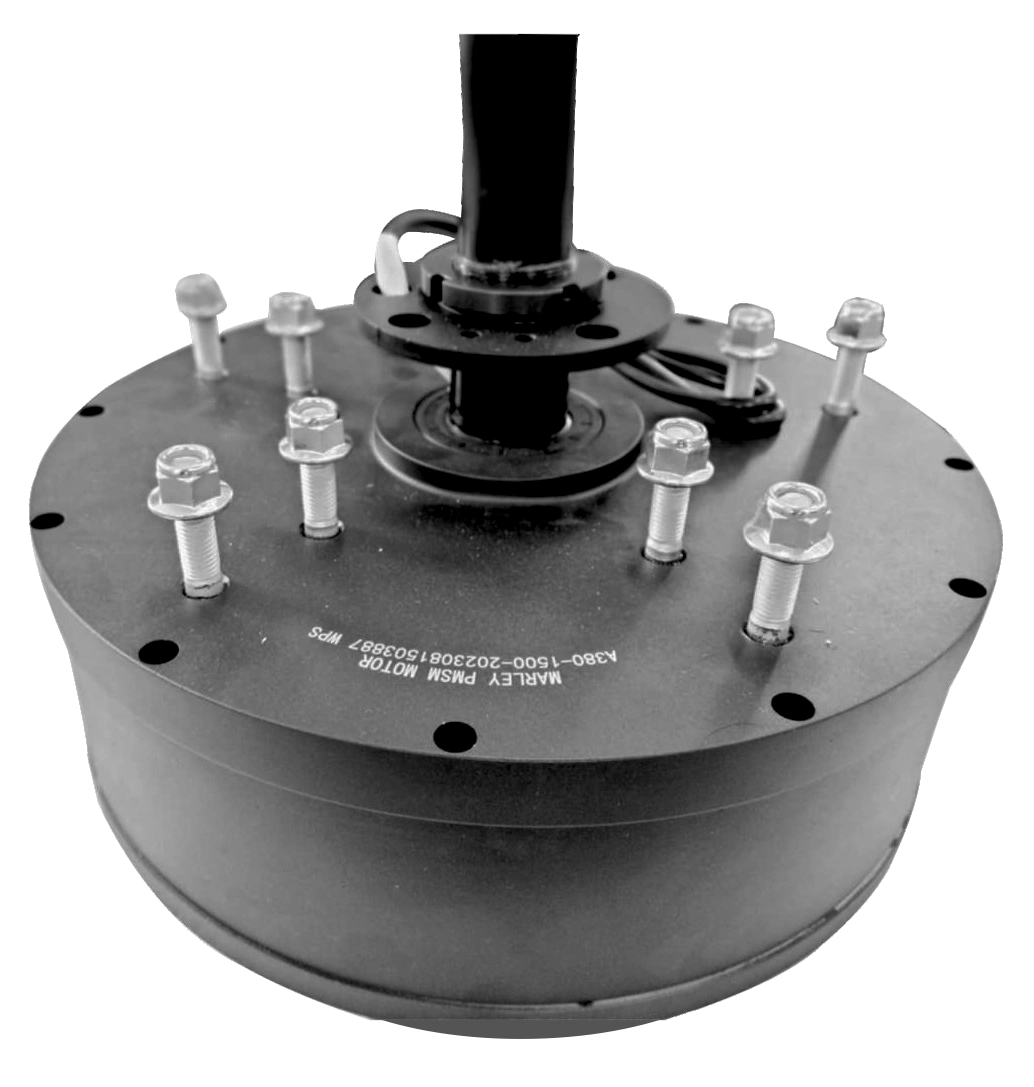

Permanent Magnet Synchronous Motor

The Advantages Of Permanent Magnet Synchronous Motor

Permanent Magnet Synchronous Motor

PMSM is an electromagnetic device that is produced by a permanent magnet as a medium for the conversi energy and electromagnetic energy to each other. In addition, PMSM Permanent magnet synchronous brusi motor has the characteristics of high control accuracy, high torque density, good torque balance, low noise, sr efficiency, high power factor, low temperature rise and so on.

We Invite You to See The Difference

Direct Drive Motor

Light Weight

Low Speed

High Volume

Ultra Silence

Maximum torque

High Efficiency

Free of Maintenance

1 year warranty

Application

application

Manufacturing Units

application

Warehouses

application

Shopping Malls

application

Supermarkets

application

Food Courts

application

Academic Institutions

application

Religious Institutions

application

Community Halls

application

Interstate Bus Terminals

application

Railway Terminals

application

Airport Terminals

application

Cow Sheds
